Seesii NanoVNA-F V3 4.3'' Vector Network Analyzer 1MHz-6GHz

by SeeSii

Original price $322.00 - Original price $322.00
Original price
$322.00
$322.00 - $322.00
Current price $322.00

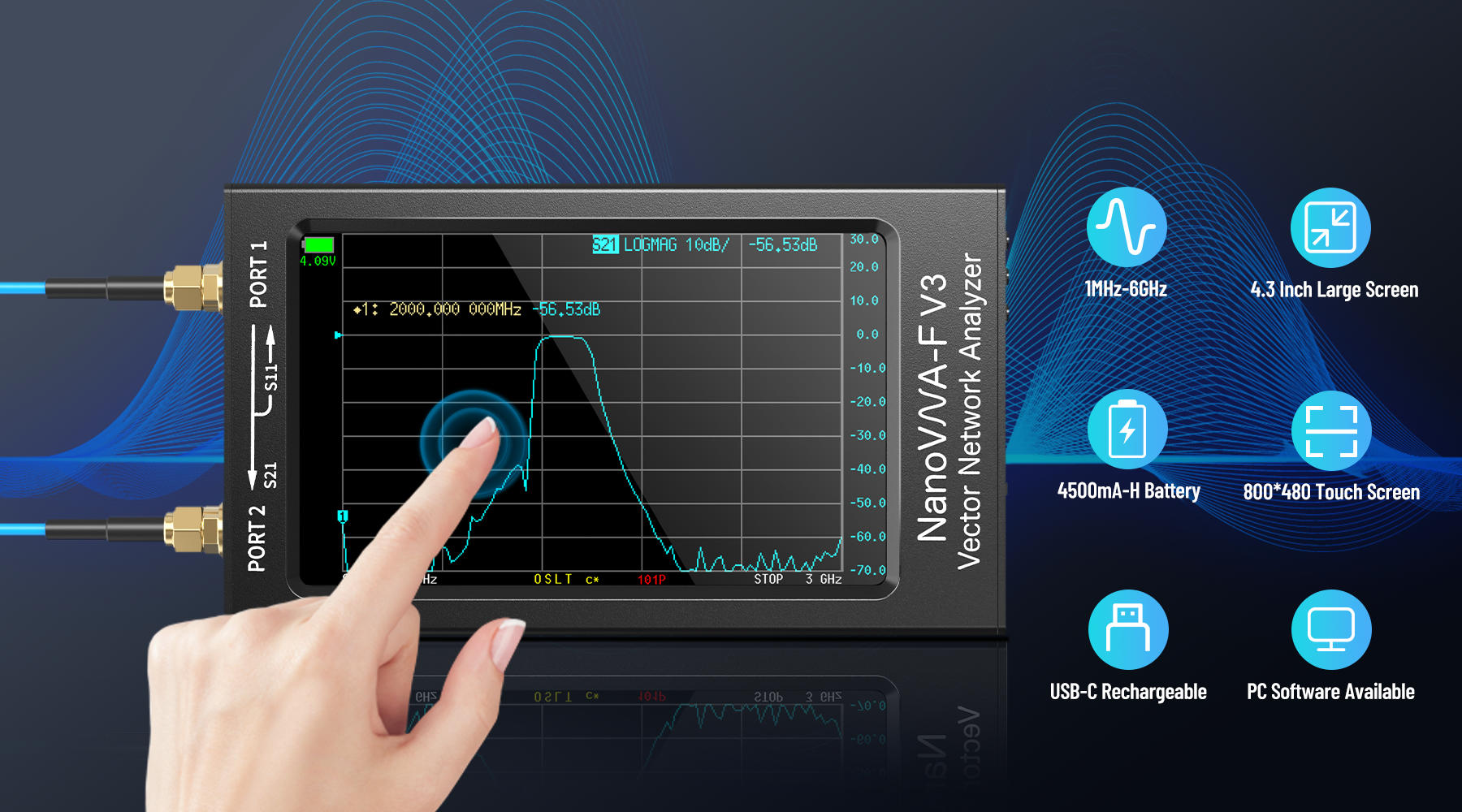

  • 👉【Improved Performance】: This NanoVNA-F V3 vna analyzer is a new production machine from 2023, with 4.3 inch 800 x 480 large touchscreen display, 1MHz to 6GHz widely measuring range, the scan speed of NanoVNA-F V3 is up to 200 points/s and the maximum scanning points is up to 801.
  • ✅【Widely Frequency Range】: Compared to the Nanovna-F V2 (50kHz-3GHz), the upgraded Nanovna-F V3 has 1MHz-6GHz ultra-wide measuring frequency range, The S21 dynamic range of NanoVNA-F V3 is 65 dB, while the S11 dynamic range is 50 dB.
  • 👍【Trustworthy Quality】: This nano vna analyzer measuring tool is made of metal material, which is durable and can effectively shield electromagnetic interference. With SMA connector design which can be used to connect DUTs directly.
  • 🎖️【Multiple Measurement Functions】: Seesii NanoVNA-F V3 antenna analyzer is suitable for antenna testing of MF/HF/VHF/UHF/SHF bands. Supports a variety of display formats: Log Mag, Linear Mag, Phase, Smith R+jX, Smith R+L/C, VSWR, Polar, Group delay, Resistance, Reactance, etc.

Specifications

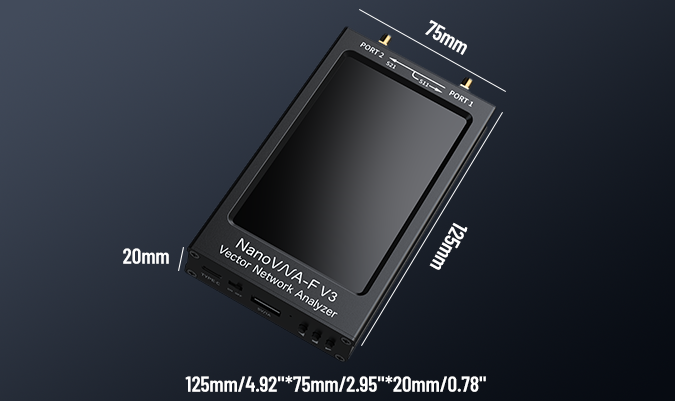

Package Dimensions:9.88 x 6.06 x 1.93 inches; 1.34 Pounds
Item model number:Seesii NanoVNA-F V3
Batteries:1 Product Specific batteries required. (included)
Date First Available:July 26, 2023
Manufacturer:Seesii
ASIN:B0CCTC88RX

NanoVNA-F V3 Vector Network Analyzer

SeeSii NanoVNA-F V3 Vector Network Analyzer

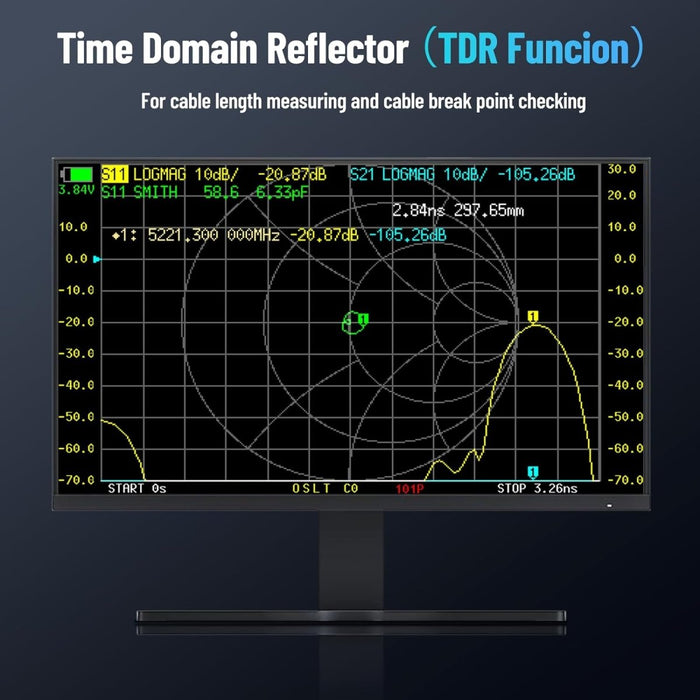

This NanoVNA-F V3 vna analyzer is a new production machine from 2023, with 4.3 inch 800 x 480 large touchscreen display, 1MHz to 6GHz widely measuring range, the scan speed of NanoVNA-F V3 is up to 200 points/s and the maximum scanning points is up to 801.In addition, the nanovna analyzer supports TDR function which is useful for cable lengths measurement.

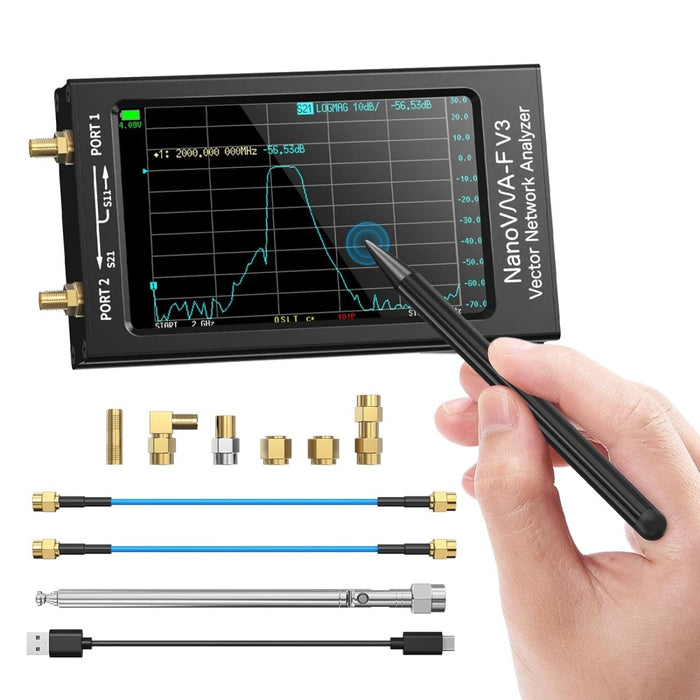

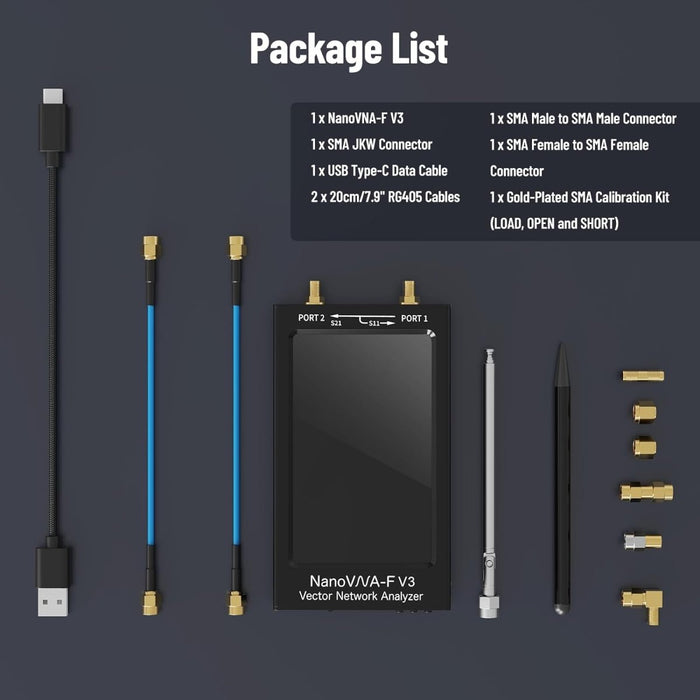

Seesii upgraded value nanovna-f v3 kit includes :

1 x NanoVNA-F V3

1 x Gold-Plated SMA Calibration Kit (LOAD, OPEN and SHORT)

1 x SMA Female to SMA Female Connector

1 x SMA Male to SMA Male Connector

1 x SMA JKW Connector

2 x 20cm/7.9" RG405 Cables

1 x USB Type-C Data Cable.

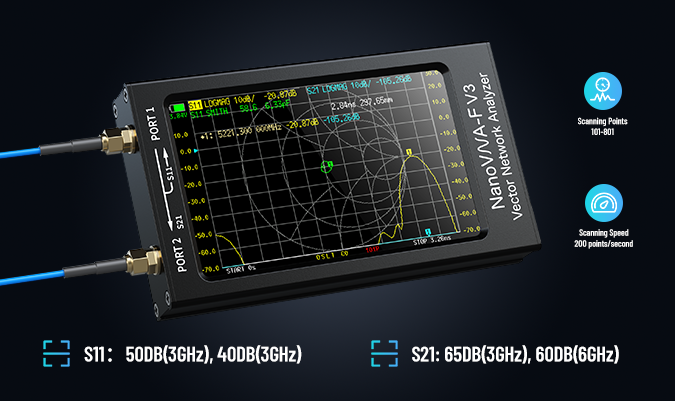

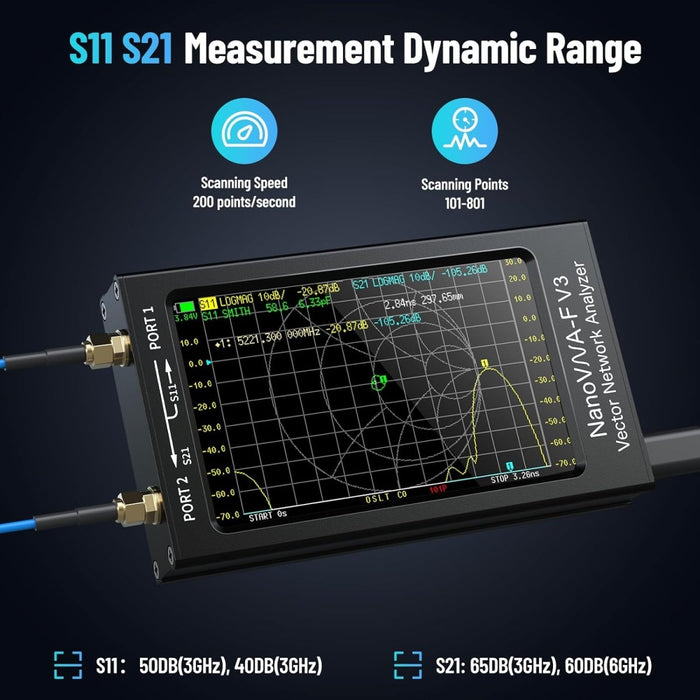

1MHz-6GHz Frequency Range S11 S21 Measurement Dynamic Range

1MHz-6GHz Frequency Range S11 S21 Measurement Dynamic Range

1MHz-6GHz ultra-wide measuring frequency range

Compared to the Nanovna-F V2 (50kHz-3GHz), the upgraded Nanovna-F V3 has 1MHz-6GHz ultra-wide measuring frequency range,

The S21 dynamic range of NanoVNA-F V3 is 65 dB, while the S11 dynamic range is 50 dB. The scan points is up to 101-801 and the calibration result storage is 12, covering up to the full low or high frequency range. Faster and more accurate measurement performance, you can easily cope with measurement test in various fields.

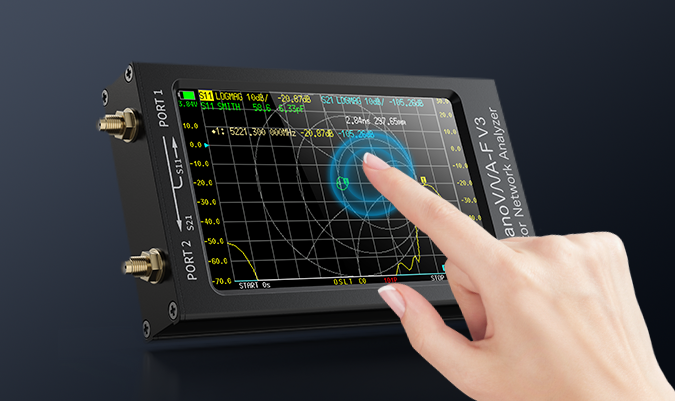

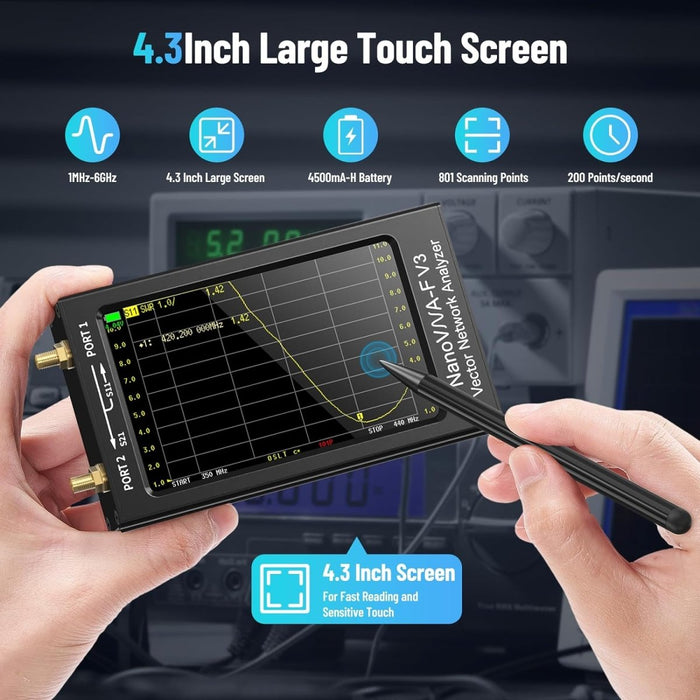

4.3 inch Sensitive Touch Screen

4.3 inch Sensitive Touch Screen

With 4.3 inch 800 x 480 high definition screen, which can let you operate and see the data more clearly, give you a better using experience.

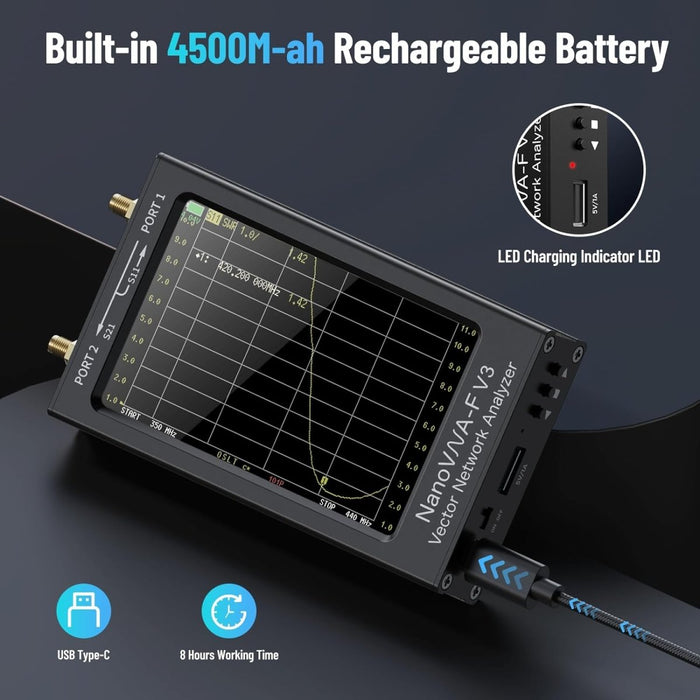

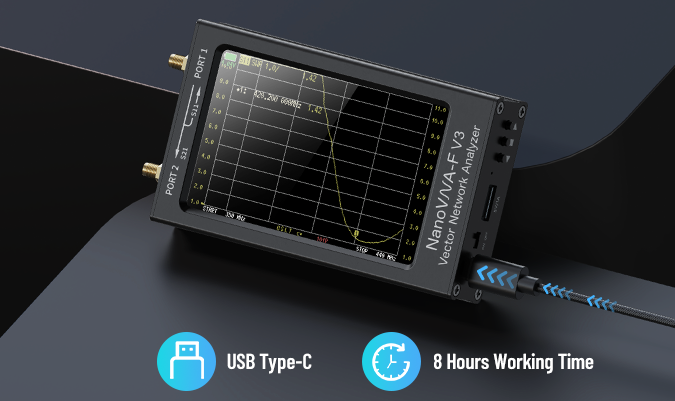

Built-in 4500mA-h Battery

Built-in 4500mA-h Battery

Ultra-long battery life,with type-C charging cable and LED charging indicator,it can be fully charged within 3 hours,no need to charge frequently.

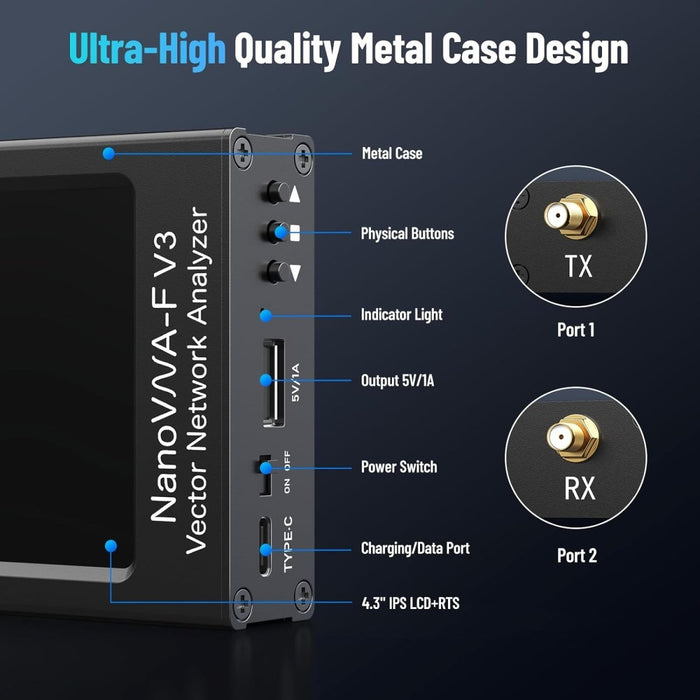

SMA Connectors, Stable and Durable

SMA Connectors, Stable and Durable

It is made of metal material, which is durable and can effectively shield electromagnetic interference. With SMA connector design which can be used to connect DUTs directly.

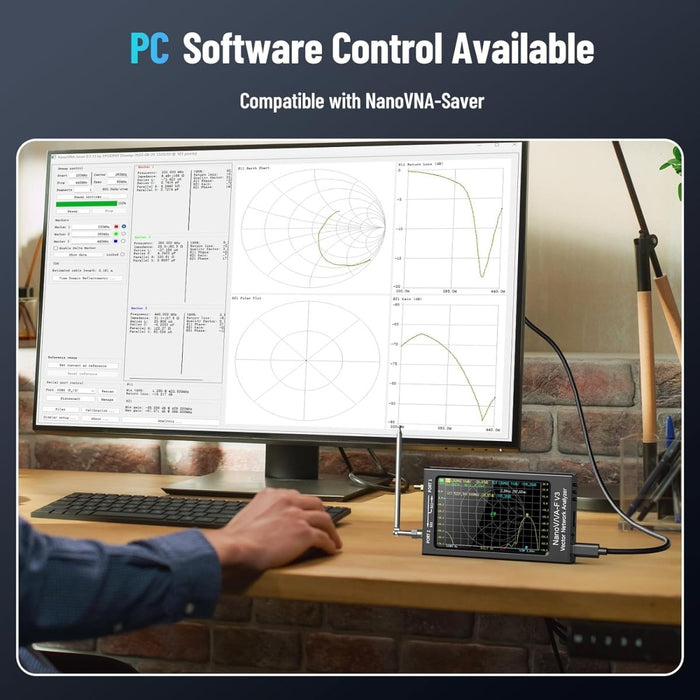

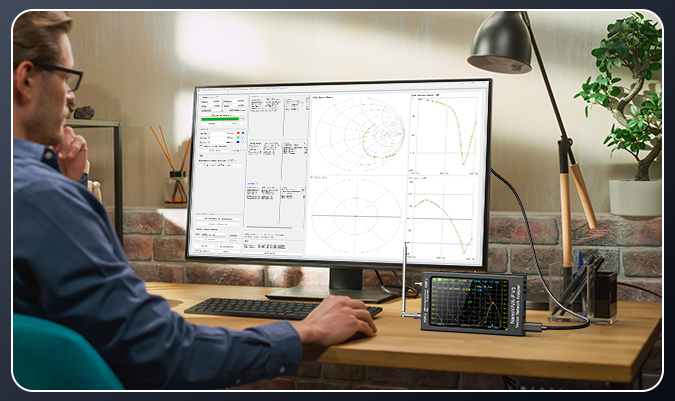

PC Software Control Available

PC Software Control Available

Compatible with NanoVNA-Saver

Support PC Software control and compatible with NanoVNA-Saver for convenient measurement data transfer.

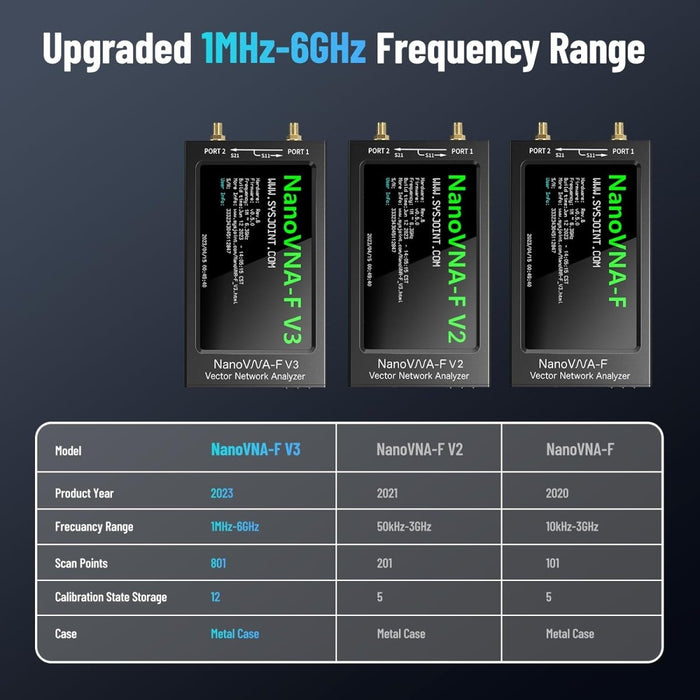

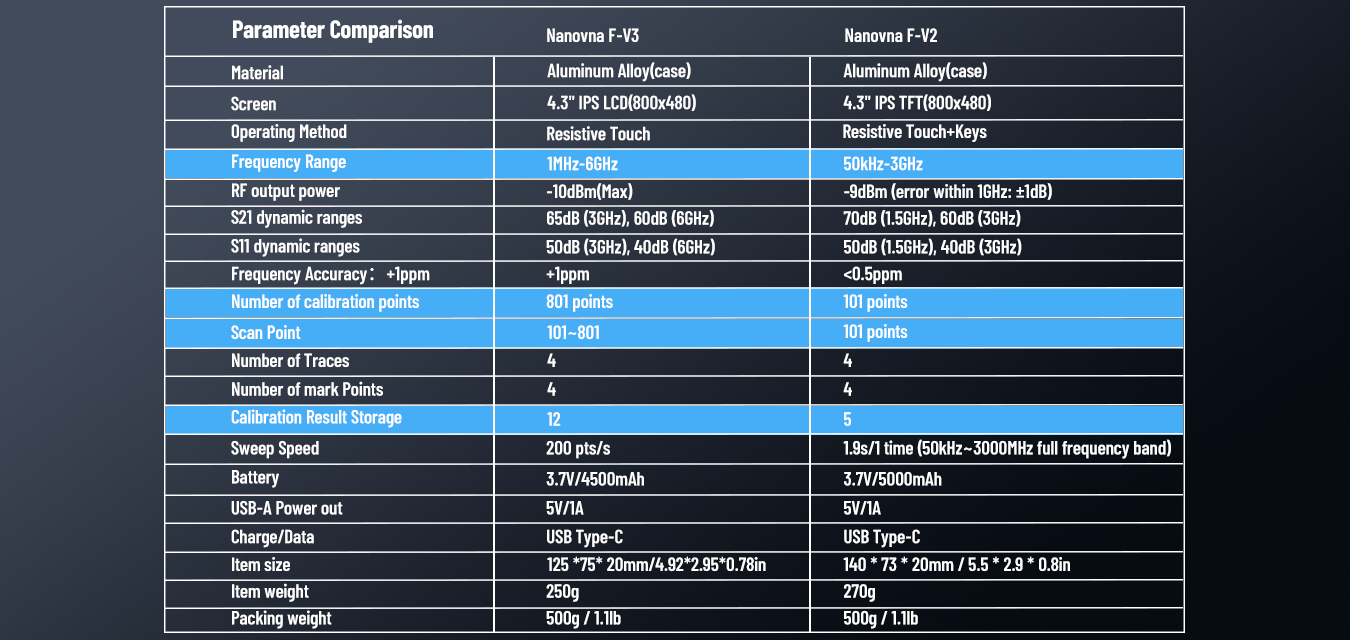

Comparison of NanoVNA-F V3 and NanoVNA-F V2

Suitable for Various Antenna Measurement

Multiple Measurement Functions

The lastes NanoVNA-F V3 antenna analyzer is suitable for antenna testing of MF/HF/VHF/UHF/SHF bands. Supports a variety of display formats: Log Mag, Linear Mag, Phase, Smith R+jX, Smith R+L/C, VSWR, Polar, Group delay, Resistance, Reactance, etc. It can also be used to measure filters, amplifiers, attenuators, cables, power dividers, couplers, duplexers and other RF components.
